Product Summary
The MX29LV800CBTC-70G is an 8-mega bit Flash memory organized as 1M bytes of 8 bits or 512K words of 16 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29LV800CBTC-70G is packaged in 44-pin SOP, 48-pin TSOP, and 48-ball CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.
Parametrics
MX29LV800CBTC-70G absolute maximum ratings: (1)Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V; (4)A9, OE#, and RESET#: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC +0.5 V; (6)Output Short Circuit Current: 200 mA.
Features
MX29LV800CBTC-70G features: (1)Extended single - supply voltage range 2.7V to 3.6V; (2)1,048,576 x 8/524,288 x 16 switchable; (3)Single power supply operation, 3.0V only operation for read, erase and program operation; (4)Fast access time: 45R/55R/70/90ns; (5)Low power consumption, 30mA maximum active current; 0.2uA typical standby current; (6)Command register architecture, Byte/word Programming (9us/11us typical); Sector Erase (Sector structure 16K-Bytex1,; (7)8K-Bytex2, 32K-Bytex1, and 64K-Byte x15); (8)Fully compatible with MX29LV800BT/BB device; (9)Auto Erase (chip & sector) and Auto Program, Automatically erase any combination of sectors with Erase Suspend capability; (10)Automatically program and verify data at specified address; (11)Erase suspend/Erase Resume, Suspends sector erase operation to read data from, or program data to, any sector that is not being erased, then resumes the erase; (12)Status Reply, Data# polling & Toggle bit for detection of program and erase operation completion.

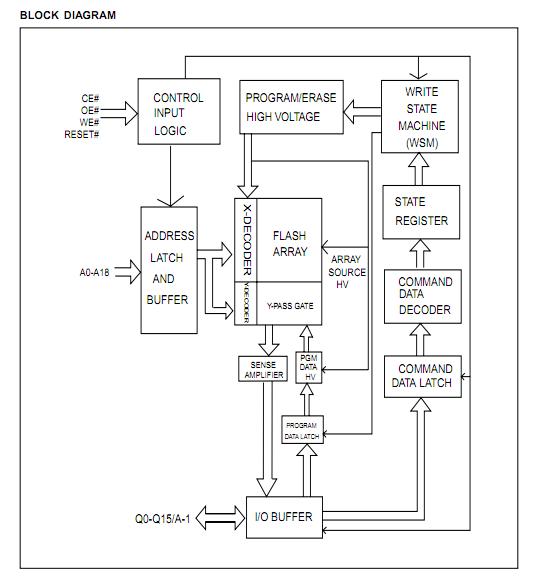

Diagrams
