NAND512R3A

NAND512R3A, NAND Flash Memory, TSOP, -0.6 to 4.6 V, 20mA, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: NAND512R3A

Brand:: STMicroelectronics - ST | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-10

From Other Seller

Part Number:NAND512R3A
US $2.50 - 3.00
Quantity:

piece

Product Summary

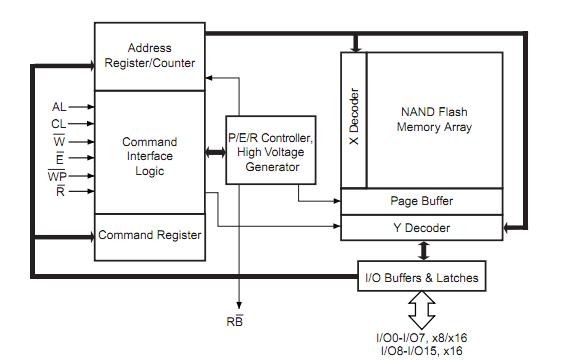

The NAND512R3A is an NAND Flash 528 Byte/ 264 Word Page memory that uses the Single Level Cell (SLC) NAND cell technology. It is referred to as the Small Page family. The device ranges from 128Mbits to 1Gbit and operate with either a 1.8V or 3V voltage supply. The size of a Page is either 528 Bytes (512 + 16 spare) or 264 Words (256 + 8 spare) depending on whether the device has a x8 or x16 bus width.

Parametrics

NAND512R3A absolute maximum ratings: (1)TBIAS, Temperature under bias: -50 to 125℃; (2)TSTG, Storage temperature: -65 to 150℃; (3)VIO, Input or output voltage: -0.6 to 4.6 V; (4)VDD, Supply voltage: -0.6 to 4.6 V.

Features

NAND512R3A features: (1)High density NAND Flash Memory, Up to 8 Gbit memory array; Cost-effective solution for mass storage applications; (2)NAND interface, x8 or 16x bus width; Multiplexed address/data; (3)Supply voltage: 1.8 V or 3.0 V device; (4)Page size, x8 device: (2048 + 64 spare) bytes; x16 device: (1024 + 32 spare) words; (5)Block size, x8 device: (128K + 4 K spare) bytes; x16 device: (64K + 2 K spare) words; (6)Multiplane architecture, Array split into two independent planes; Program/erase operations can be performed on both planes at the same time; (7)Page read/program, Random access: 25 μs (max); Sequential access: 25 ns (min); Page program time: 200 μs (typ); Multiplane page program time (2 pages): 200 μs (typ); (8)Copy back program with automatic error detection code (EDC); (9)Cache read mode; (10)Fast block erase, Block erase time: 1.5 ms (typ); Multiblock erase time (2 blocks): 1.5 ms (typ); (11)Status Register; (12)Electronic signature; (13)Chip Enable don’t care; (14)Serial number option.
