Product Summary
The PS3001BL is a fast switching plastic rectifier.
Parametrics
PS3001BL absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 1000 V; (2)Maximum RMS Voltage: 700 V; (3)Maximum DC Blocking Voltage: 1000 V; (4)Maximum Average Forward Rectified Current .375"(9.5mm)Lead Length at TA=55 ¢J: 3.0 A; (5)Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC method): 200 A; (6)Typical Junction capacitance (Note 2)CJ: 60 PF; (7)Typical Thermal Resistance (Note 3)R £KJA: 22 ¢J/W; (8)Operating and Storage Temperature Range: -55 TO +150¢J.
Features
PS3001BL features: (1)High surge current capability; (2)Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound; (3)Void-free Plastic in DO-201AD package; (4)3 ampere operation at TA=55 ¢J with no thermarunaway; (5)Exceeds environmentastandards of MIL-S-19500/228; (6)Fast switching for high efficiency.

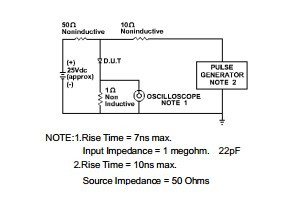

Diagrams
