Product Summary
The S9S08DZ60F1MLH is a microcontroller which provides significant value to customers looking to combine Controller Area Network(CAN) and embedded EEPROMin their applications. This combination will provide lower costs, enhanced performance, and higher quality.
Parametrics
S9S08DZ60F1MLH absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to + 5.8 V; (2)Input voltage, VIn: – 0.3 to VDD + 0.3 V; (3)Instantaneous maximum current: 25mA; (4)Maximum current into VDD: IDD: 120 mA; (5)Storage temperature: Tstg: –55 to +150 ℃.
Features
S9S08DZ60F1MLH features: (1)40-MHz HCS08 CPU (20-MHz bus); (2)HC08 instruction set with added BGND instruction; (3)Support for up to 32 interrupt/reset sources; (4)Two very low power stop modes; (5)Reduced power wait mode; (6)Very low power real time interrupt for use in run, wait, and stop.

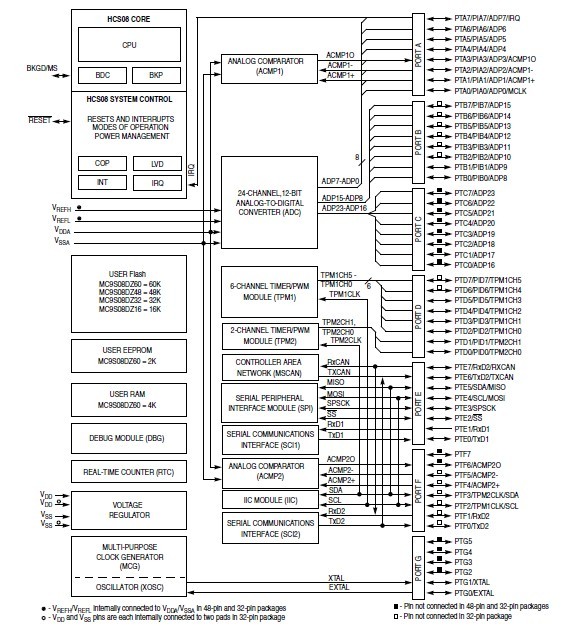

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S9S08DZ60F1MLH |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) M74K MASK ONLY-AUTO |
Data Sheet |
|
|
|||||||||||||
