Product Summary

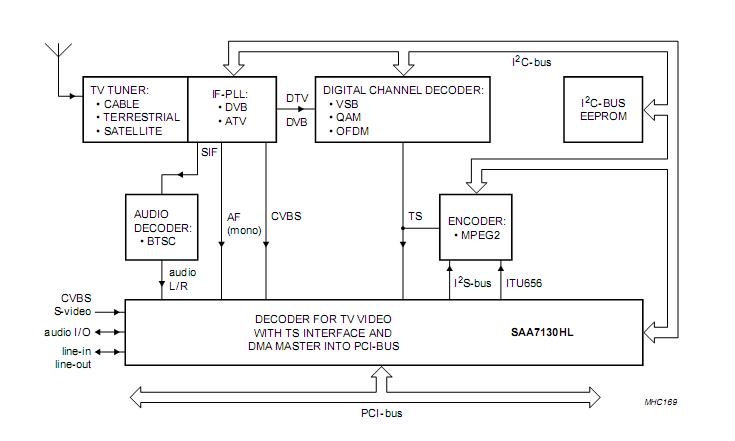

The SAA7130HL/V1 is a single chip solution to digitize and decode video, and capture it through the PCI-bus. The SAA7130HL/V1 offers versatile periphera linterfaces (GPIO) , that support various extended applications, e.g. analog audio pass-through for loop back cable to the sound card,orcapture of DTV and DVB transport streams, such as Vestigial Side Band (VSB), Orthogonal Frequency Division Multiplexing (OFDM) and Quadrature Amplitude Modulation (QAM) decoded digital television standards. Applications of the SAA7130HL/V1 package is LQFP128.
Parametrics
The SAA7130HL/V1 absolute maximum ratings: (1) supply voltage VDD: 3.0V to 3.6V; (2) total power dissipation Ptot: 1.0W; (3) standby power dissipation Pstandby: 0.02W (D3-hot of ACPI) ; (4) ambient temperature Tamb: 25°C to 70°C.
Features
SAA7130HL/V1 features: (1) PCI and DMA bus mastering; (2) TV video decoder and video scaling; (3) Propagate reset and ACPI state D3-hot; (4) Package: LQFP128; (5) Power consumption of typical application: 1W; (6) SDK for Windows (95,98,NT,2000 and XP),Video for Windows (VfW) and Windows Driver Model (WDM) .
Diagrams
