Product Summary

The SAS2380-1 is a short circuit relay. The SAS2380-1 is a solid state relay to short a load if this load is broken. It is mainly used to short lamps on airport taxiways. It could be used too as a stable protection against over voltage. The load is shorted as soon as the line voltage exceeds the dectection level. As soon as the line voltage is nominal the relay reset alone and switch off.

Parametrics

SAS2380-1 absolute maximum ratings: (1)Line voltage: 500 Veff; (2)Power of lamps: 45-400 ou 200 W; (3)Short circuit current: 6,6 A; (4)Level of detection: 55 V; (5)Offset voltage: 1,1 V; (6)Leakage current: < 2 mA; (7)Holding current: 50 mA; (8)Peak voltage: 600 V; (9)Static du/dt: 200 V/μs; (10)Switch-on time: 0,1 mS.

Features

SAS2380-1 features: (1)Storage temperature: -40 to +125℃; (2)Operating temperature: -40 to +125℃; (3)Output/case isolation: 1500 V eff; (4)Weight: 80 g; (5)Thermal resistance (Rthc-a): 4,5℃/W.

Diagrams

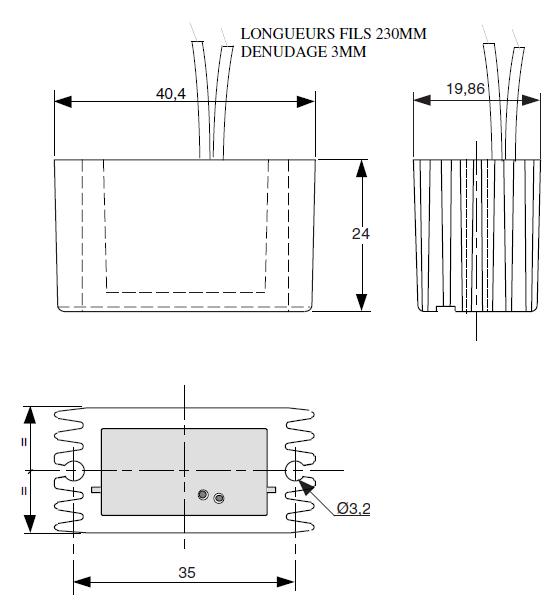

SAS2380-1 block diagram
