SN74AVC1T45DBVR

SN74AVC1T45DBVR, single-bit dual-supply bus transceiver, SOT, -0.5 to 4.6 V, ±50 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	2.80 / Piece
301 ~ 600 :	2.50 / Piece
601 ~ 1000 :	2.00 / Piece

PartNumber:: SN74AVC1T45DBVR

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-11

From Other Seller

Part Number:SN74AVC1T45DBVR
US $2.00 - 2.80
Quantity:

piece

Product Summary

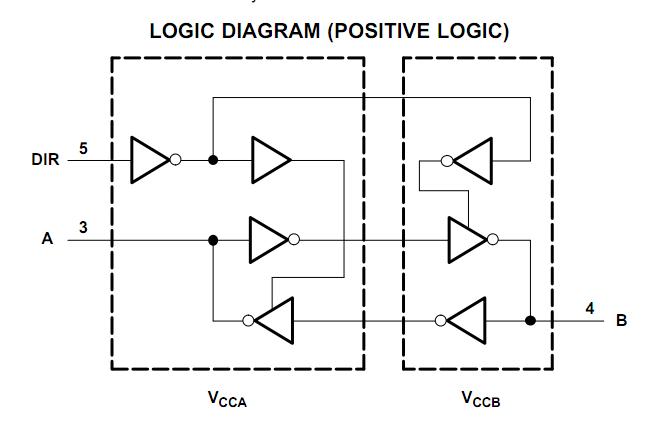

The SN74AVC1T45DBVR is a single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC1T45DBVR is optimized to operate with V CCA /V CCB set at 1.4 V to 3.6 V. It is operational with V CCA /V CCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.

Parametrics

SN74AVC1T45DBVR absolute maximum ratings: (1)VCCA, VCCB, Supply voltage range: -0.5 to 4.6 V; (2)VI, Input voltage range, I/O ports (A port): -0.5 to 4.6V; I/O ports (B port): -0.5 to 4.6 V; Control inputs: -0.5 to 4.6V; (3)VO, Voltage range applied to any output in the high-impedance or power-off state, A port: -0.5 to 4.6V; B port: -0.5 to 4.6V; (4)VO, Voltage range applied to any output in the high or low state , A port: -0.5 to VCCA + 0.5V; B port: -0.5 to VCCB + 0.5V; (5)IIK, Input clamp current VI< 0: -50 mA; (6)IOK, Output clamp current V O < 0: -50 mA; (7)IO, Continuous output current: ±50 mA; (8)Continuous current through VCCA, VCCB, or GND: ±100 mA.

Features

SN74AVC1T45DBVR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2-V to 3.6-V Power-Supply Range; (3)VCC Isolation Feature - If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State; (4)DIR Input Circuit Referenced to VCCA; (5)±12-mA Output Drive at 3.3 V; (6)I/Os Are 4.6-V Tolerant; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).
