SN74LVTH162245DGGR

Product Summary

The SN74LVTH162245DGGR is a 16-bit (dual-octal) noninverting 3-state transceiver designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The SN74LVTH162245DGGR can be used as two 8-bit transceivers or one 16-bit transceiver. The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable ( OE ) input can be used to disable the device so that the buses are effectively isolated.

Parametrics

SN74LVTH162245DGGR absolute maximum ratings: (1)VCC, Supply voltage range: -0.5 to 4.6 V; (2)VI, Input voltage range: -0.5 to 7 V; (3)VO, Voltage range applied to any output in the high-impedance or power-off state: -0.5 to 7 V; (4)VO, Voltage range applied to any output in the high state: -0.5 to VCC + 0.5 V; (5)IO, Current into any output in the low state SN74LVTH162245 (B port): 128 mA; (6)IO, Current into any output in the high state: 64 mA; (7)IIK, Input clamp current VI< 0: -50 mA; (8)IOK, Output clamp current VO < 0: -50 mA.

Features

SN74LVTH162245DGGR features: (1)Members of the Texas Instruments Widebus Family; (2)A-Port Outputs Have Equivalent 22-Ω Series Resistors, So No External Resistors Are Required; (3)Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V V CC ); (4)Support Unregulated Battery Operation Down to 2.7 V; (5)Typical V OLP (Output Ground Bounce) <0.8 V at V CC = 3.3 V, T A = 25℃; (6)Ioff and Power-Up 3-State Support Hot Insertion; (7)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (8)Distributed V CC and GND Pins Minimize High-Speed Switching Noise; (9)Flow-Through Architecture Optimizes PCB Layout; (10)Latch-Up Performance Exceeds 500 mA Per JESD 17; (11)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).

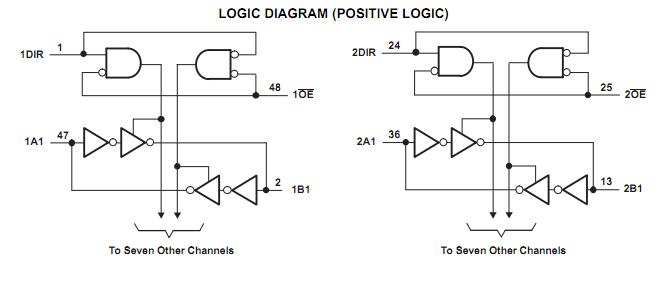

Diagrams
