SRV05-4

SRV05-4, surge rated diode array, SOT, 300W, 12A, Semtech Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	2.00 / Piece
301 ~ 600 :	1.80 / Piece
601 ~ 1000 :	1.50 / Piece

PartNumber:: SRV05-4

Brand:: Semtech Corporation - Semtech | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-12

From Other Seller

Part Number:SRV05-4
US $1.50 - 2.00
Transient Voltage Suppressors ESD Protection Diodes with Low Clamping

US $0.02 - 0.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SRV05-4 is a surge rated diode array designed to protect high speed data interfaces. SRV05-4 has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. Typical applications of SRV05-4 include: USB 2.0 Power and Data Line Protection, Video Graphics Cards, Monitors and Flat Panel Displays, Digital Video Interface (DVI), 10/100/1000 Ethernet, Notebook Computers, SIM Ports, ATM Interfaces, IEEE 1394 Firewire Ports.

Parametrics

SRV05-4 absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs), Ppk: 300 Watts; (2)Peak Pulse Current (tp = 8/20μs), IPP: 12 A; (3)ESD per IEC 61000-4-2 (Air), VESD: 15 kV; (4)ESD per IEC 61000-4-2 (Contact), VESD: 8 kV; (5)Lead Soldering Temperature, TL: 260 (10 sec.)℃; (6)Operating Temperature, TJ: -55 to +125℃; (7)Storage Temperature, TSTG: -55 to +150℃.

Features

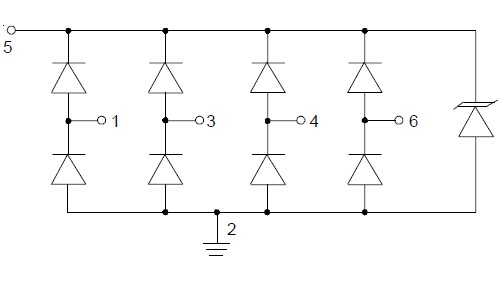

SRV05-4 features: (1)ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns), IEC 61000-4-5 (Lightning) 12A (8/20μs); (2)Array of surge rated diodes with internal TVS Diode; (3)Small package saves board space; (4)Protects four I/O lines; (5)Low capacitance: 3pF typical; (6)Low clamping voltage; (7)Low operating voltage: 5.0V; (8)Solid-state silicon-avalanche technology.
