Product Summary

The STM8L151C8T6 is an 8-bit ultralow power microcontroller. The STM8L151C8T6 features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.

Parametrics

STM8L151C8T6 absolute maximum ratings: (1)VDD- VSS, External supply voltage: -0.3 to 4.0V; (2)VIN, Input voltage on true open drain pins (PC0 and PC1): VSS-0.3 to 5.25V; Input voltage on any other pin: VSS-0.3 to 4.6V.

Features

STM8L151C8T6 features: (1)Main microcontroller features, Supply voltage range 1.65 V to 3.6 V; Low power consumption (Halt: 0.3 μA, Active-halt: 0.8 μA, Dynamic Run: 150 μA/MHz); STM8 Core with up to 16 CISC MIPS; (2)throughput; Temp. range: -40 to 85℃ and 125℃; (3)Memories, Up to 8 Kbytes of Flash program including up to 2 Kbytes of data EEPROM; Error correction code (ECC); Flexible write and read protection modes; In-application and in-circuit programming; Data EEPROM capability; 1.5 Kbytes of static RAM; (4)Clock management, Internal 16 MHz RC with fast wakeup time; (5)(typ. 4 μs); Internal low consumption 38 kHz RC driving both the IWDG and the AWU; (6)Reset and supply management, Ultralow power, ultrasafe power-on-reset/power down reset; Three low power modes: Wait, Active-halt, Halt.

Diagrams

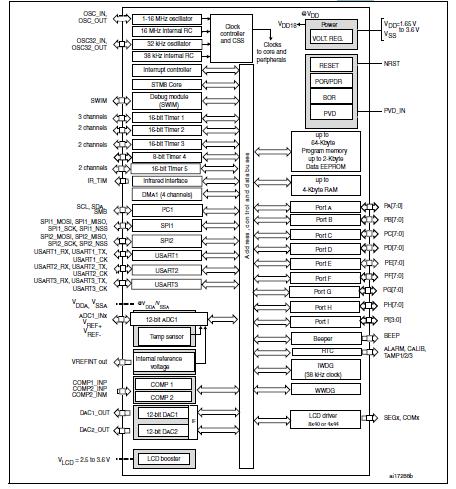

STM8L151C8T6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM8L151C8T6
STM8L151C8T6

STMicroelectronics

8-bit Microcontrollers (MCU) STM8L Ultra LP 8-Bit LCD 48-Pin 64kB

Data Sheet

0-910: $1.21
910-1000: $1.02
1000-2000: $0.97
2000-5000: $0.93
STM8L151C8T6TR
STM8L151C8T6TR

STMicroelectronics

8-bit Microcontrollers (MCU) STM8L Ultra LP 8-Bit LCD 48-Pin 64kB

Data Sheet

0-1730: $1.02
1730-2000: $0.97
2000-2400: $0.97
2400-5000: $0.93
