TC1270ASVRCTR

TC1270ASVRCTR, Voltage Supervisor, SOT, 7V, 10mA Microchip Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.70 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: TC1270ASVRCTR

Brand:: Microchip Technology - Microchip | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-30

From Other Seller

Part Number:TC1270ASVRCTR
US $2.50 - 3.00
Quantity:

piece

Product Summary

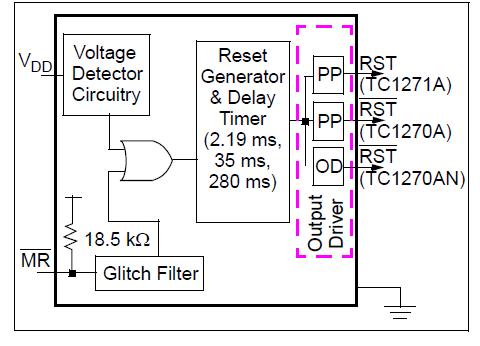

The TC1270ASVRCTR is a Voltage Supervisor with Manual Reset Input.

Parametrics

TC1270ASVRCTR absolute maximum ratings: (1)Supply Voltage (VDD to VSS): +7.0V; (2)Input Current, VDD: 10 mA; (3)Output Current, RESET, RESET: 10 mA; (4)Voltage on all inputs and outputs, w.r.t. VSS: -0.6V to (VDD + 1.0V); (5)Storage Temperature Range: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +125℃; (7)Maximum Junction Temperature, TS: 150℃; (8)ESD protection on all pins, Human Body Model: ≥ 4 kV; Machine Model: ≥ 400V.

Features

TC1270ASVRCTR features: (1)Precision voltage monitor, 2.63V, 2.93V, 3.08V, 4.38V and 4.63V trip points (Typical); (2)Manual Reset input; (3)Reset Time-out Delay: Standard: 280 ms (Typical); Optional: 2.19 ms, and 35 ms (Typical); (4)Power Consumption≤15μA max; (5)No glitches on outputs during power-up Active Low Output Options: Push-Pull Output and Open-Drain Output; (6)Active High Output Option: Push-Pull Output; (7)Replacement for (Specification compatible with): TC1270, TC1271; TCM811, TCM812; (8)Fully static design; (9)Low voltage operation (1.0V); (10)ESD protection: 4 kV Human Body Model (HBM); 400V Machine Model (MM); (11)Extended (E) Temperature range: -40℃ to +125℃.
