Product Summary
The TPD12S521 is a single-chip ESD solution for the high-definition multimedia interface (HDMI) transmitter port. In many cases, the core ICs, such as the scalar chipset, may not have robust ESD cells to sustain system-level ESD strikes. In these cases, the TPD12S521 provides the desired system level ESD protection, such as the the IEC61000-4-2 (Level 4) ESD, by absorbing the energy associated with the ESD strike. The applications of the TPD12S521 include PCs, Consumer Electronics, Set-Top Boxes, DVDRW Players.
Parametrics
TPD12S521 absolute maximum ratings: (1)VCC5 VCC3: 6V; (2)DC voltage at any channel input GND: –0.5 VCC + 0.5V; (3)Tstg Storage temperature range: -65 to 150℃.
Features
TPD12S521 features: (1)Single-Chip ESD Solution for High-Definition Multimedia Interface (HDMI) Driver; (2)0.9pF Capacitance for High-Speed Transition Minimized Differential Signaling (TMDS) Lines; (3)0.05pF Matching Capacitance Between the Differential Signal Pair; (4)Integrated Level Shifting for the Control Lines; (5)±8-kV Contact ESD Protection on External Lines; (6)38-Pin Thin Shrink Small-Outline Package (TSSOP) Provides Seamless Layout Option With HDMI Connector; (7)Back-drive Protection; (8)Lead-Free Package; (9)On-Chip Current Regulator With 55mA Current Output.

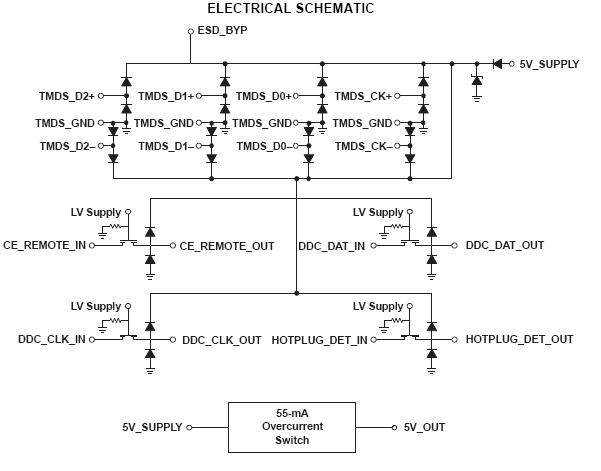

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPD12S521 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TPD12S521DBTR |
Texas Instruments |
ESD Suppressors HDMI RECEIVER PORT PROTECTION |
Data Sheet |
|
|
||||||||||||
|
TPD12S521DBTRG4 |
Texas Instruments |
ESD Suppressors HDMI Transmitter Port Protection |
Data Sheet |
|
|
||||||||||||
