Product Summary

The TS5A3159ADCKR is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers low on-state resistance and excellent on-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The TS5A3159ADCKR has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The applications of the TS5A3159ADCKR include Cell Phones, PDAs, Portable Instrumentation, Audio and Video Signal Routing, Low-Voltage Data Acquisition Systems, Communication Circuits, Modems, Hard Drives, Computer Peripherals and Wireless Terminals and Peripherals.

Parametrics

TS5A3159ADCKR absolute maximum ratings: (1)V+, Supply voltage range: –0.5 to 6.5 V; (2)VNO, VNC, VCOM, Analog voltage range: –0.5 to V + + 0.5 V; (3)IK, Analog port diode current: –50 mA; (4)INO, INC, On-state switch current: – 200 to 200mA; (5)ICOM, On-state peak switch current: – 400 to 400mA; (6)VI, Digital input voltage range: – 0.5 to 6.5 V; (7)IIK, Digital input clamp current: -50 mA; (8)I+, Continuous current through V +: 100 mA; (9)IGND, Continuous current through GND: –100 to 100 mA; (10)θJA, Package thermal impedance: 259 ℃/W; (11)Tstg, Storage temperature range: – 65 to 150℃.

Features

TS5A3159ADCKR features: (1)Isolation in Power-Down Mode, V + = 0; (2)Pin Compatible With TS5A3159; (3)Specified Break-Before-Make Switching; (4)Low On-State Resistance (1Ω); (5)Control Inputs Are 5.5-V Tolerant; (6)Low Charge Injection; (7)Excellent On-State Resistance Matching; (8)Low Total Harmonic Distortion (THD); (9)1.65-V to 5.5-V Single-Supply Operation; (10)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (11)ESD Performance Tested Per JESD: 2000-V Human-Body Model; 1000-V Charged-Device Model.

Diagrams

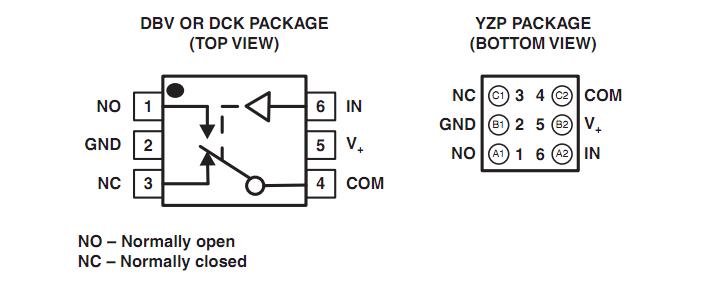

TS5A3159ADCKR pin configuraiton

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS5A3159ADCKR
TS5A3159ADCKR
Texas Instruments
Analog Switch ICs SPDT ANALOG SWITCH
Data Sheet
0-1: $0.50
1-25: $0.40
25-100: $0.36
100-250: $0.33
TS5A3159ADCKRE4
TS5A3159ADCKRE4
Texas Instruments
Analog Switch ICs SPDT ANALOG SWITCH
Data Sheet
0-2100: $0.22
2100-3000: $0.20
3000-6000: $0.20
6000-12000: $0.19
TS5A3159ADCKRG4
TS5A3159ADCKRG4
Texas Instruments
Analog Switch ICs 1O SPDT Ana Sw
Data Sheet
0-2350: $0.20
2350-3000: $0.19
3000-6000: $0.18
