Product Summary

The TW9900 is an analog front-end equipped with three separate analog channels that enable it to accept all three possible analog video signal standards: composite, S-video or YPbPr component video. The TW9900 is possible to connect up to six composite inputs at one time and allow the software to switch between them. The front-end contains all the necessary circuits to simplify the system design. AGC and clamping circuits, and three 9-bit analog-todigital converters (ADCs) convert inputs into digital signals for processing.

Parametrics

TW9900 absolute maximum ratings: (1)Type: NTSC/PAL/SECAM Video Decoder; (2)Applications: Multimedia; (3)Mounting Type: Surface Mount; (4)Package / Case: 100-LQFP; (5)Voltage - Supply, Analog: 3.3V; (6)Voltage - Supply, Digital: 3.3V.

Features

TW9900 features: (1)Analog Video Decoder and Analog Component Input; (2)Video processing; (3)Video Output; (4)Miscellaneous.

Diagrams

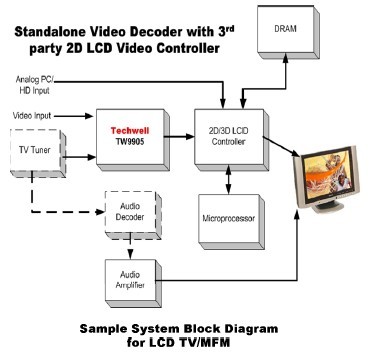

TW9900 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TW9900-NA1-GR
TW9900-NA1-GR

IC NTSC/PAL/SECAM DECODER 32TQFP
Data Sheet
0-1: $4.05
1-25: $3.68
25-100: $2.57
TW9900-NA1-GR-EVAL
TW9900-NA1-GR-EVAL

EVAL BOARD FOR TW9900-NA1-GR
Data Sheet
0-1: $364.50
TW9900-TA1-GR
TW9900-TA1-GR

IC NTSC/PAL/SECAM DECODER 32TQFP
Data Sheet
0-1: $4.28
1-25: $3.89
25-100: $2.71
TW9900-NA1-GRT
TW9900-NA1-GRT

IC NTSC/PAL/SECAM DECODER 32TQFP
Data Sheet
0-6000: $2.03
