Product Summary
The USB3343CP is a stand-alone Hi-Speed USB Physical Layer Transceiver (PHY). The USB3343CP uses a low pin count interface (ULPI) to connect to a ULPI compliant Link layer. The ULPI interface reduces the UTMI+ interface from 54 pins to 12 pins using a method of in-band signaling and status byte transfers between the Link and PHY. This PHY was designed from the start with the ULPI interface. No UTMI to ULPI wrappers are used in this design which provides a seamless ULPI to Link interface. The result is a PHY with a low latency transmit and receive time. SMSC’s low latency high speed and full speed receiver provide the option of re-using existing UTMI Links with a simple wrapper to convert UTMI to ULPI. The applications of the USB3343CP include Cell Phones, MP3 Players, Scanners, External Hard Drives, Still and Video Cameras, Portable Media Players, Entertainment Devices.
Parametrics
USB3343CP absolute maximum ratings: (1)Host, 100uF; (2)Device, 1uF, 10uF; (3)OTG Device, 1uF, 6.5uF.
Features
USB3343CP features: (1)USB-IF “Hi-Speed” certified to the Universal Serial Bus Specification Rev 2.0; (2)Interface compliant with the ULPI Specification revision 1.1 in 8-bit mode; (3)Industry standard UTMI+ Low Pin Interface (ULPI.) Converts 54 UTMI+ signals into a standard 12 pin Link controller interface; (4)Supports FS pre-amble for FS hubs with a LS device attached (UTMI+ Level 3); (5)Supports HS SOF and LS keep-alive pulse; (6)Includes full support for the optional On-The-Go (OTG) protocol detailed in the On-The-Go Supplement Revision 1.0a specification; (7)Supports the OTG Host Negotiation Protocol (HNP) and Session Request Protocol (SRP.); (8)Allows host to turn VBUS off to conserve battery power in OTG applications; (9)Supports OTG monitoring of VBUS levels with internal comparators. Includes support for an external VBUS or fault monitor; (10)Low Latency Hi-Speed Receiver (43 Hi-Speed clocks Max) allows use of legacy UTMI Links with a ULPI wrapper ; (11)Integrated Pull-up resistor on STP for interface protection allows a reliable Link/PHY start-up with slow Links (software configured for low power.); (12)Internal 1.8 volt regulators allow operation from a single 3.3 volt supply; (13)Internal short circuit protection of ID, DP and DM lines to VBUS or ground; (14)Integrated 24MHz Crystal Oscillator supports either crystal operation or 24MHz external clock input; (15)Internal PLL for 480MHz Hi-Speed USB operation; (16)54.7mA Unconfigured Current (typical) - ideal for bus powered applications; (17)83uA suspend current (typical) - ideal for battery powered applications; (18)Full Commercial operating temperature range from 0℃ to +70℃; (19)32 pin QFN package; green, lead-free (5 x 5 x 0.90 mm height).

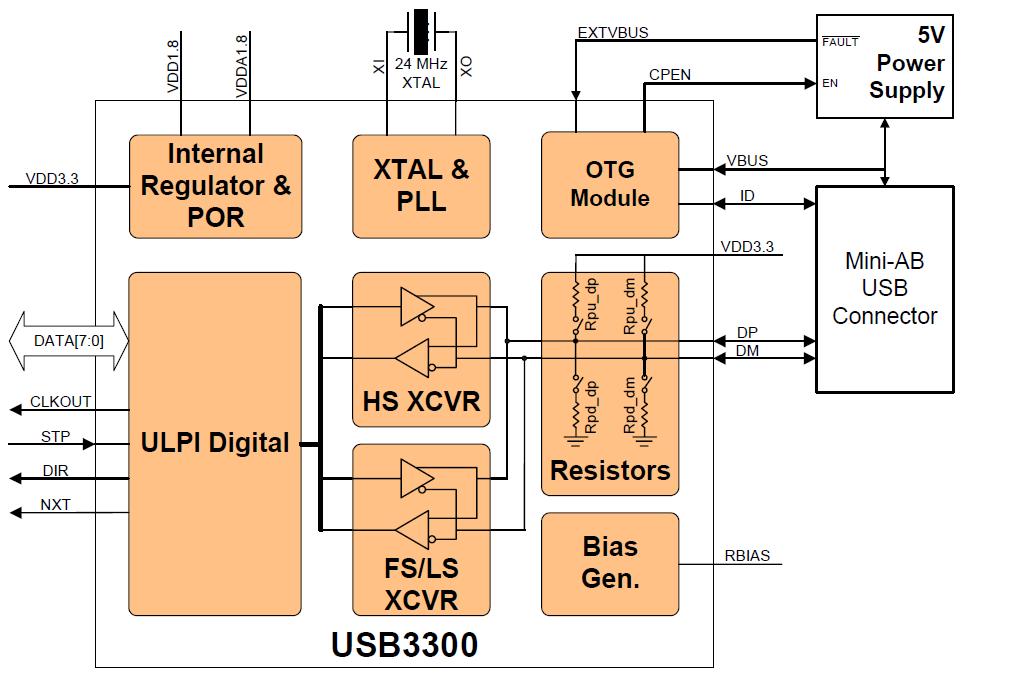

Diagrams
