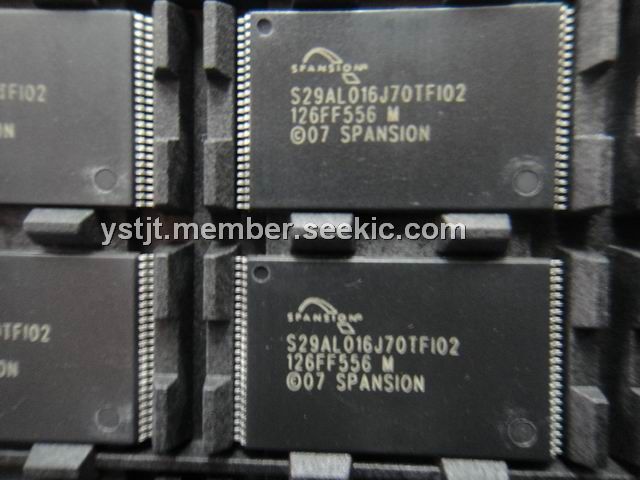

s29al016j70tf102

16 Mbit, 3.0 Volt-only Flash memory, 70 ns, TSOP-48, Single Power Supply Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: s29al016j70tf102

Brand:: SPANSION - spansion | Pack: TSOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Alice's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-13

From Other Seller

Part Number:s29al016j70tf102
US $0.10 - 1.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The s29al016j70tf102 is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), 64-ball Fortified BGA (1.0 mm pitch) and 48-pin TSOP packages. The s29al016j70tf102 is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The s29al016j70tf102 can also be programmed in standard EPROM programmers.

Parametrics

s29al016j70tf102 absolute maximum ratings: absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–65℃ to +125℃; (3)Voltage with Respect to Ground: VCC:–0.5V to +4.0V, A9, OE#, and RESET#:–0.5V to +12.5V, All other pins:–0.5V to VCC+0.5V; (4)Output Short Circuit Current:200mA.

Features

s29al016j70tf102 features: (1)Single Power Supply Operation; (2)Manufactured on 110 nm Process Technology; (3)Secured Silicon Sector region; (4)Flexible Sector Architecture; (5)Sectors can be locked in-system or via programming equipment; (6)Unlock Bypass Program Command; (7)Top or Bottom Boot Block Configurations Available; (8)Compatibility with JEDEC standards; (9)High Performance; (10)Ultra Low Power Consumption (typical values at 5 MHz); (11)Cycling Endurance: 1,000,000 cycles per sector typical; (12)Data Retention: 20 years typical.
