AFCT-701SDZ

AFCT-701SDZ, 10Gb Ethernet SFP Transceiver, BGA, -0.3 to 3.8 V, 20mA, AVAGO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: AFCT-701SDZ

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-15

From Other Seller

Part Number:AFCT-701SDZ
US $2.50 - 3.00
Quantity:

piece

Product Summary

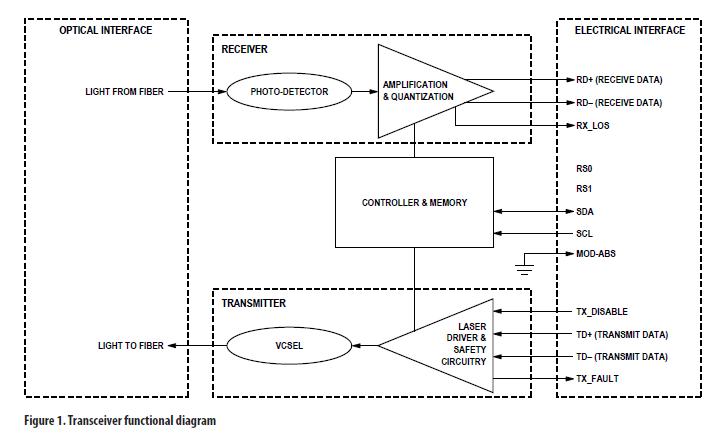

The AFCT-701SDZ is a 10Gb Ethernet SFP Transceiver. This transceiver utilizes Avago’s 850nm VCSEL and PIN Detector technology to provide an IEEE 10Gb Ethernet design compliant with the 10GBASE-SR standard. The AFCT-701SDZ transceiver is designed to enable 10Gb Ethernet equipment designs with very high port density based on the new electrical and mechanical specification enhancements to the well known SFP specifications developed by the SFF Committee.

Parametrics

AFCT-701SDZ absolute maximum ratings: (1)Storage Temperature TS: -40 to 100℃; (2)Case Operating Temperature, TC: -40 to 100℃; (3)Relative Humidity, RH: 5 to 95 %; (4)Supply Voltage, VccT, VccR: -0.3 to 3.8 V; (5)Low Speed Input Voltage: -0.5 to Vcc+0.5 V; (6)Two-Wire Interface Input Voltage: -0.5 to Vcc+0.5 V; (7)High Speed Input Voltage, Single Ended: -0.3 to Vcc+0.5 V; (8)High Speed Input Voltage, Differential: 2.5 V; (9)Low Speed Output Current: -20 to 20 mA; (10)Optical Receiver Input Average Power: 0 dBm.

Features

AFCT-701SDZ features: (1)Avago 850nm VCSEL source and Transmitter Optical Subassembly technology; (2)Avago PIN detector and Receiver Optical Subassembly technology; (3)Typical power dissipation 600mW; (4)Full digital diagnostic management interface; (5)Avago SFP+ package design enables equipment EMI performance in high port density applications with margin to Class B limits.
