Product Summary
The BCM70010KFB0G is a high-definition video PCI subsystem with 2D graphic.
Features
BCM70010KFB0G features: (1)ATSC-compliant, All-Format MP@HL MPEG-2 video decoder; (2)Decodes up to four MP@ML video streams; (3)Standard-definition output with reduced memory requirements; (4)Simultaneous analog high-definition/standard-definition output; (5)Dolby Digital (AC-3)/MPEG multichannel audio decoder with SPDIF output: Dual I2S bidirectional audio ports; (6)Stereo audio DACs; (7)Advanced 2D/3D-effects graphics engine: Studio-quality text and graphics at HD resolution, Supports multiple layers and windows; (8)NTSC analog video decoder; (9)NTSC/PAL/HD video encoder; (10)PCI 2.1 compliant; (11)POD support including DVS 213 DES descrambler; (12)DVB and DC2-compliant transport demux with DVB and DES descramblers.

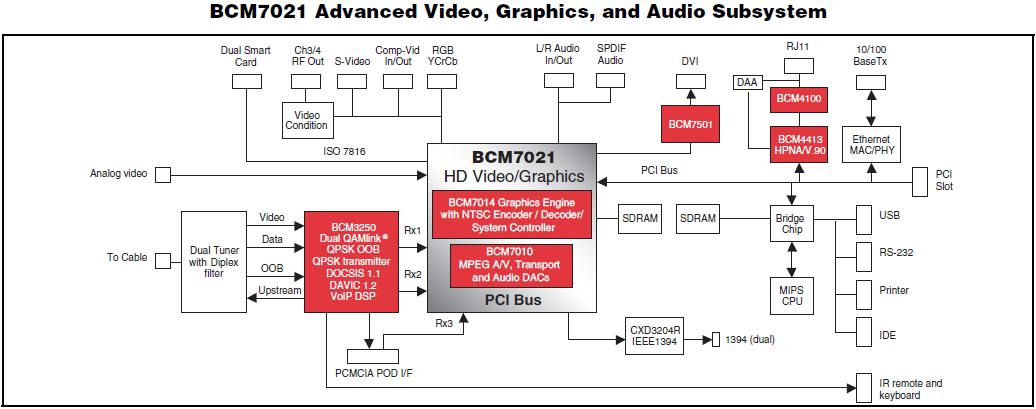

Diagrams
