Product Summary

The CX92725-11Z is an Integrated Ethernet MAC. Conexant delivers a new level of imaging and multimedia performance with the introduction of the CX92725-11Z. The CX92725-11Z is an integrated, customizable Processor with features that enable advanced multimedia for digital photo frames, multimedia/connected devices, and interactive display appliances. The device delivers best-in-class image processing, quick time-to-market, and a low cost Bill of Materials (BOM).

Features

CX92725-11Z features: (1)ARM9 microprocessor with Vector Floating Point Unit; (2)High-performance image processor and JPEG codec; (3)High speed DDR2 memory; (4)USB 2.0 high-speed device and two host ports; (5)Integrated Ethernet MAC; (6)Direct Memory Card Controller; (7)LCD Controller supporting up to HD resolution; (8)MPEG4/H.264 video decode support with hardware post processor; (9)I2C interface, I2S, SPI, SDIO/UART interfaces; (10)Direct Touchscreen support via integrated ADCs and GP control; (11)ThreadX and Linux Operating System support.

Diagrams

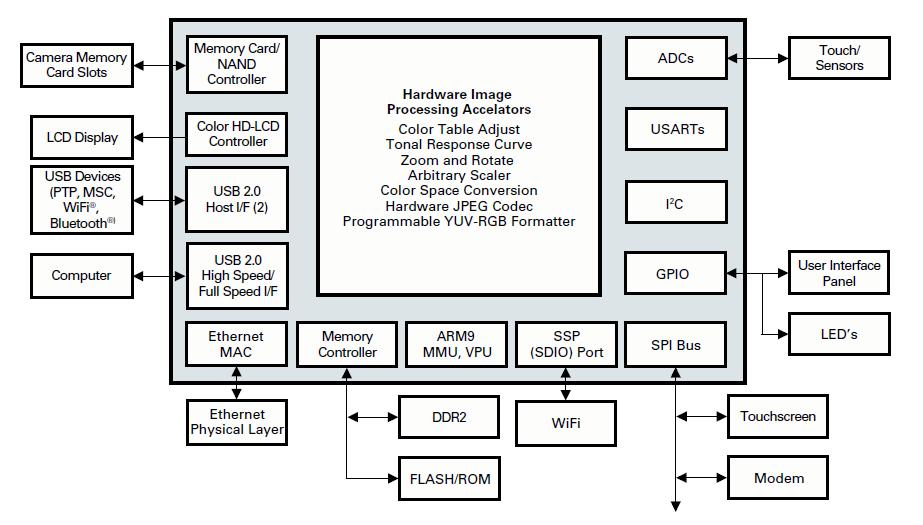

CX92725-11Z block diagram
