Product Summary

Offered in 256Mx8bit, theK9F2G08U0B-PIB0 is a 2G-bit NAND Flash Memory with spare 64M-bit. NAND cell of the K9F2G08U0B-PIB0 provides the most cost-effective solution for the solid state application market. The I/O pins of the K9F2G08U0B-PIB0 serve as the ports for address and data input/output as well as command input.

Parametrics

K9F2G08U0B-PIB0 maximum ratings: (1) Voltage on any pin relative to VSS, VCC: -0.6V to +2.45V, VIN: -0.6V to +2.45V, VI/O: -0.6V to VCC +0.3V (< 2.45V); (2) Temperature Under Bias Tstg: -65°C to 150°C; (3) Short Circuit Current IOS: 5mA.

Features

K9F2G08U0B-PIB0 features: (1) Memory Cell Array : (256M + 8M) x 8bit; (2) Automatic Program and Erase; (3) Command/Address/Data Multiplexed I/O Port; (4) Hardware Data Protection; (5) Program/Erase Lockout During Power Transitions; (6) Intelligent Copy-Back with internal 1bit/528Byte EDC; (7) Unique ID for Copyright Protection; (8) Fast Write Cycle Time.

Diagrams

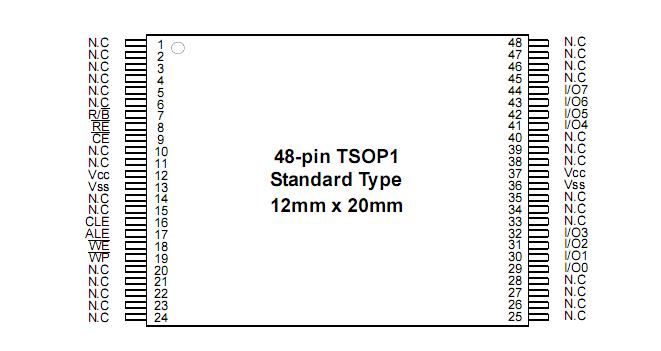

K9F2G08U0B-PIB0 Pin Configuration="
