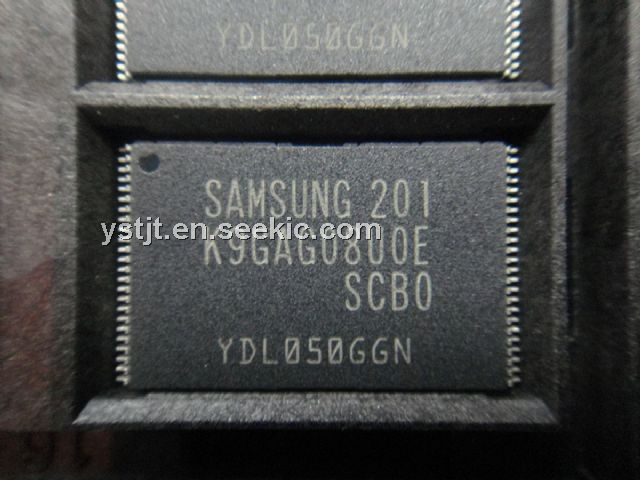

Product Summary

The K9GAG08UOE-SCBO is a 2G x 8 bit NAND flash memory. The K9GAG08UOE-SCBO is a 16G-bit NAND Flash Memory with spare 512M-bit. The device is offered in 2.7V and 3.3V Vcc. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation of the K9GAG08UOE-SCBO can be performed in typical 800μs on the 4,224-byte page and an erase operation can be performed in typical 1.5ms on a (512K+16K)byte block. Data in the data register of the K9GAG08UOE-SCBO can be read out at 25ns cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command input.

Parametrics

K9GAG08UOE-SCBO absolute maximum ratings: (1)Program Time tPROG: 0.8 to 3 ms; (2)Dummy Busy Time for Multi Plane Program tDBSY: 0.5 to 1 μs; (3)Block Erase Time tBERS: 1.5 to 10 ms; (4)VCC: -0.6 to + 4.6V; (5)VIN: -0.6 to + 4.6 V; (6)VI/O: -0.6 to Vcc+0.3 (<4.6V); (7)Temperature Under Bias TBIAS: -10 to +125℃; (8)Storage Temperature TSTG: -65 to +150 ℃; (9)Short Circuit Current Ios: 5 mA.

Features

K9GAG08UOE-SCBO features: (1)Fast Write Cycle Time; (2)Block Erase Time: 1.5ms(Typ.); (3)Command/Address/Data Multiplexed I/O Port; (4)Hardware Data Protection; (5)Program/Erase Lockout During Power Transitions; (6)Reliable CMOS Floating-Gate Technology; (7)Endurance: TBD(with 4bit/512byte ECC); (8)Data Retention: 10 Years; (9)Command Register Operation; (10)Unique ID for Copyright Protection.

Diagrams

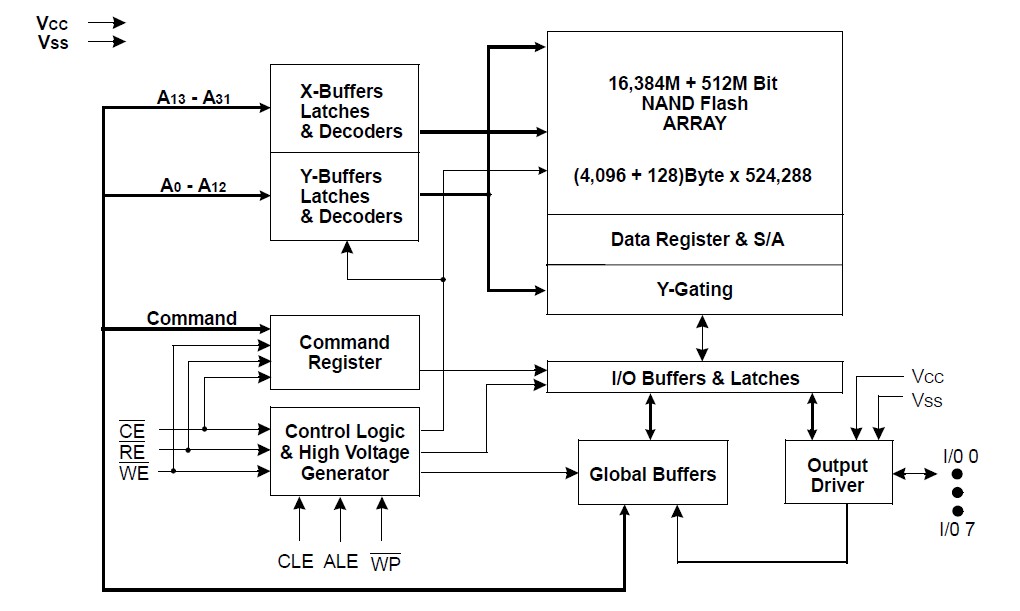

K9GAG08UOE-SCBO block diagram
