Product Summary

The MT29C2G48MAKJCJC-6IT is a 168-Ball NAND Flash and LPDRAM PoP (TI OMAP) MCP. Micron package-on-package (PoP) MCP products combine NAND Flash and Mobile LPDRAM devices in a single MCP. The MT29C2G48MAKJCJC-6IT targets mobile applications with low- power, high-performance, and minimal package-footprint design requirements. The MT29C2G48MAKJCJC-6IT is also members of the Micron discrete memory products portfolio.

Parametrics

MT29C2G48MAKJCJC-6IT absolute maximum ratings: (1)Vcc, Vdd, Vddq supply voltage relative to Vss, Vcc, Vdd, Vddq: –1.0 to 2.4 V; (2)Voltage on any pin relative to Vss, Vin: –0.5 to 2.4V or (supply voltage1 +0.3V), whichever is less; (3)Storage temperature range: –55 to +150℃.

Features

MT29C2G48MAKJCJC-6IT features: (1)Micron NAND Flash and LPDRAM components; (2)RoHS-compliant, green package; (3)Separate NAND Flash and LPDRAM interfaces; (4)Space-saving multichip package/package-on-package combination; (5)Low-voltage operation (1.70–1.95V); (6)Industrial temperature range: –40 to +85℃.

Diagrams

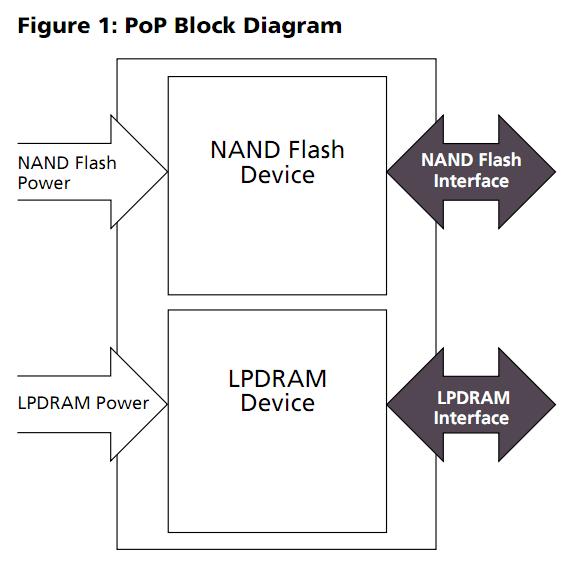

MT29C2G48MAKJCJC-6IT block diagram
