Product Summary

The S25FL128POXMFI001 is a 3.0 Volt (2.7 V to 3.6 V), single-power-supply Flash memory device. The device consists of 64 sectors of 256 KB memory, or 256 sectors of 64 KB memory. The device accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. The memory can be programmed 1 to 256 bytes at a time, using the Page Program command. The S25FL128POXMFI001 supports Sector Erase and Bulk Erase commands.

Parametrics

S25FL128POXMFI001 absolute maximum ratings: (1)Ambient Operating Temperature (TA) Industrial: -40℃ to +85℃; (2)Positive Power Supply Voltage Range: 2.7 V to 3.6 V; (3)Ambient Storage Temperature: -65℃ to +150℃; (4)Voltage with Respect to Ground: All Inputs and I/Os: -0.5 V to VCC+0.5 V.

Features

S25FL128POXMFI001 features: (1)High Current Capability (1 A); (2)High Power Handling (Up to 650 mW); (3)Low VCE(s) (150 mV Typical @ 500 mA); (4)Small Size; (5)This is a Pb-Free Device.

Diagrams

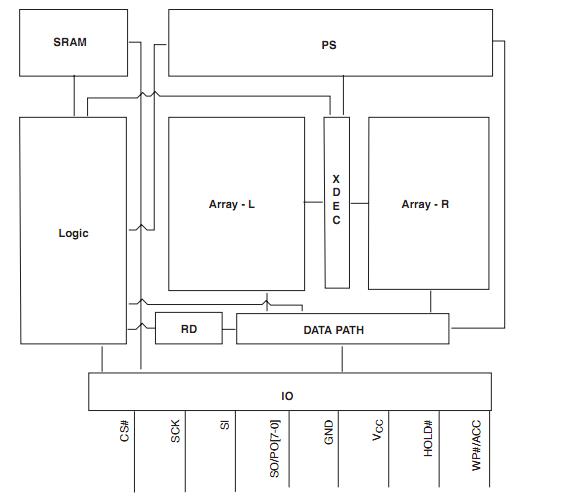

S25FL128POXMFI001 block diagram
