Product Summary
The S29GL032N90TF04 is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ0-DQ15; byte mode data appears on DQ0-DQ7. The S29GL032N90TF04 is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The device is available with access times as fast as 70 ns. The device is offered in 40-pin TSOP, 48-pin TSOP and 48-ball FBGA packages.
Parametrics
S29GL032N90TF04 absolute maximum ratings: (1)+VDD to GND: -0.3V to +6V; (2)Digital Input Voltage to GND: -0.3V to +VDD + 0.3V; (3)Operating Temperature Range: -40℃ to +105℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Junction Temperature (TJ max): +150℃; (6)TSSOP Package, Power Dissipation: (TJ max-TA)/θJA; (7)θJA Thermal Impedance: 240℃/W; (8)Lead Temperature, Soldering, Vapor Phase (60s): +215℃; Infrared (15s): +220℃.
Features
S29GL032N90TF04 features: (1)Single Power Supply Operation; Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Manufactured on 110 nm Process Technology, Fully compatible with 200 nm S29AL008D; (3)Secured Silicon Sector region, 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number accessible through a command sequence; May be programmed and locked at the factory or by the customer; (4)Flexible Sector Architecture, One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and fifteen 64 Kbyte sectors (byte mode); One 8 Kword, two 4 Kword, one 16 Kword, and fifteen 32 Kword sectors (word mode); (5)Sector Group Protection Features, A hardware method of locking a sector to prevent any program or erase operations within that sector; Sectors can be locked in-system or via programming equipment; Temporary Sector Unprotect feature allows code changes in previously locked sectors; (6)Unlock Bypass Program Command, Reduces overall programming time when issuing multiple program command sequences; (8)Top or Bottom Boot Block Configurations Available.

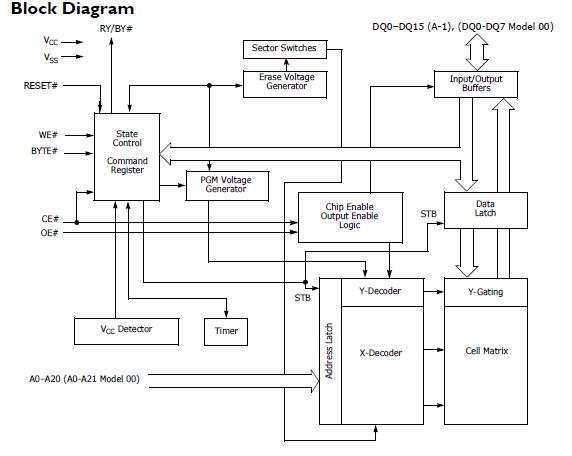

Diagrams
