Product Summary
The SM2231T-AD is a Chip LED.
Parametrics
SM2231T-AD absolute maximum ratings: (1)Power dissipation, PD: 63 mW; (2)Forward current, IF: 25 mA; (3)Peak forward current, IFP: 50 mA; (4)Reverse voltage, VR: 4 V; (5)Operating temperature range, Topr: -25～80 ℃; (6)Storage temperature range, Tstg: -30～100 ℃; (7)Soldering temperature, Tsol: 240℃ for 10 seconds.
Features
SM2231T-AD features: (1)Colorless diffusion lens type; (2)Compact type; (3)Radiation size 1.3mm × 2.9mm; (4)Surface mount lead configuration.

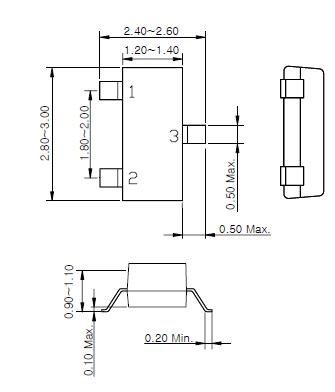

Diagrams
