Product Summary

The SN8P26L34XG is an 8-Bit Micro-Controller.

Parametrics

SN8P26L34XG absolute maximum ratings: (1)Supply voltage (Vdd): -0.3V ~ 6.0V; (2)Input in voltage (Vin): Vss -0.2V ~ Vdd + 0.2V; (3)Operating ambient temperature (Topr) SN8P2602BP, SN8P2602BS, SN8P2602BX: 0℃ ~ + 70℃; SN8P2602BPD, SN8P2602BSD, SN8P2602BXD: -40℃ ~ + 85℃; (4)Storage ambient temperature (Tstor): -40℃ ~ + 125℃.

Features

SN8P26L34XG features: (1)Memory configuration, OTP ROM size: 1K * 16 bits; RAM size: 48 * 8 bits; Four levels stack buffer; (2)I/O pin configuration, Bi-directional: P0, P1, P5; Input only: P1.5; Programmable open-drain: P1.0; Wakeup: P0, P1 level change trigger; Pull-up resisters: P0, P1, P5; External Interrupt trigger edge: P0.0 controlled by PEDGE register; (3)3-Level LVD, Reset system and power monitor; (4)Powerful instructions One clocks per instruction cycle (1T), Most of instructions are one cycle only, All ROM area JMP instruction. Green mode: Periodical wakeup by T0 Timer; All ROM area CALL address instruction; All ROM area lookup table function (MOVC).

Diagrams

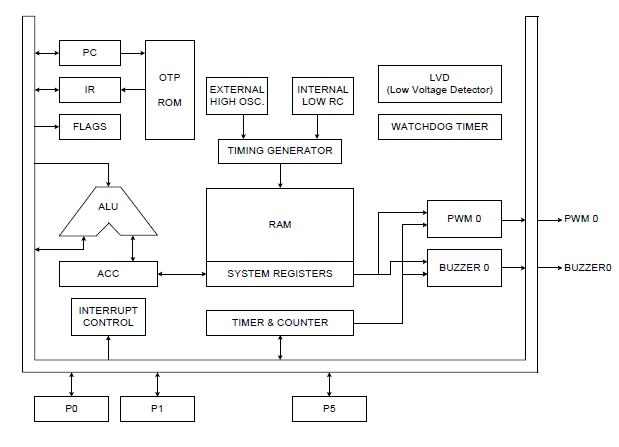

SN8P26L34XG block diagram
