Product Summary
The STI1010FUAA2T is a highly-integrated, high-performance system-on-chip iDTV processor compliant with worldwide digital TV standards such as ATSC (US), DVB (Europe), ARIB (Japan), DMB-TH (China) and PAL/SECAM/NTSC analog TV standards. The STI1010FUAA2T provides a cost-optimized solution for iDTV (basic TV platform DTV150), with a minimum number of external components, 32-bit unified DDR2 memory interface for CPU, OSD, video.
Features
STI1010FUAA2T features: (1)32-Bit RISC ST40 CPU, 266 MHz, 480 MIPs; (2)DDR2 unified memory interface, 250 MHz clock; (3)Transport stream demultiplexer with DES, DVB and Multi2 descrambler; (4)CableCard and DVB-CI interface; (5)MP@ML and MP@HL MPEG2 video decoder; (6)24-bit audio DSP core, MPEG1(layers 1,2,3), MPEG2, MPEG2-AAC, DolbyR Digital, MP3 decoder; (7)Analog video input: CVBS, SVHS(Y/C), Component (from SD up to HD 720p, 1080i, 1080p); (8)PC input, analog RGB up to UXGA/60 Hz (162 MHz sampling frequency); (9)24-bit digital video input, up to 1080p and UXGA/60 Hz HDMI/HDCP input, RGB/YCrCb up to 1080p, UXGA/60 Hz support, stereo and 5.1 multi-channel audio. Compliant with HDMI 1.3, DVI 1.0, HDCP v1.3; (10)USB2.0 high speed interface (480 Mbits/s); (11)High definition video processor; (12)Multi-standard color decoder (PAL/SECAM/NTSC), with 3D comb filtering in NTSC and PAL, Luma and Chroma spatio-temporal (3D) noise reduction; (13)Double video pipe for Picture In Picture (PIP) display; (14)2D graphic accelerator and enhanced True color on screen display. Bitmap OSD generated at panel resolution; (15)Video and graphic composition for Picture And Text (PAT), Picture And Graphic (PAG), mosaic; (16)Exhaustive set of peripherals for DTV chassis control; (17)Dual LVDS output for flat panel display support, up to full HD 1920 × 1080p resolution.; (18)Package FPBGA 27×27, 700 balls, pitch 0.8 mm.

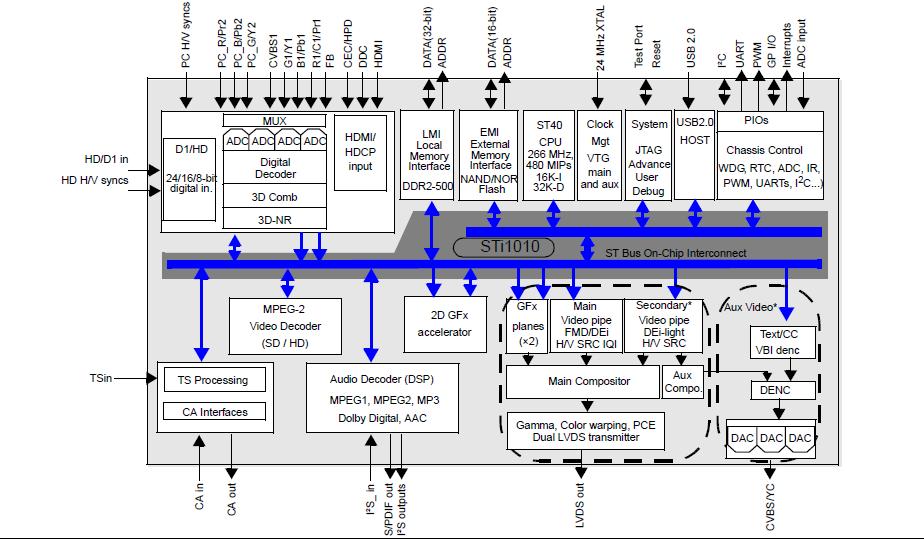

Diagrams
