WM8976

WM8976, Low Power CODEC With Speaker Driver, QFN, -0.3V to +7V, 40mW, Wolfson Microelectronics plc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: WM8976

Brand:: Wolfson Microelectronics plc - Wolfson | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-19

From Other Seller

Part Number:WM8976
US $2.50 - 3.00
Quantity:

piece

Product Summary

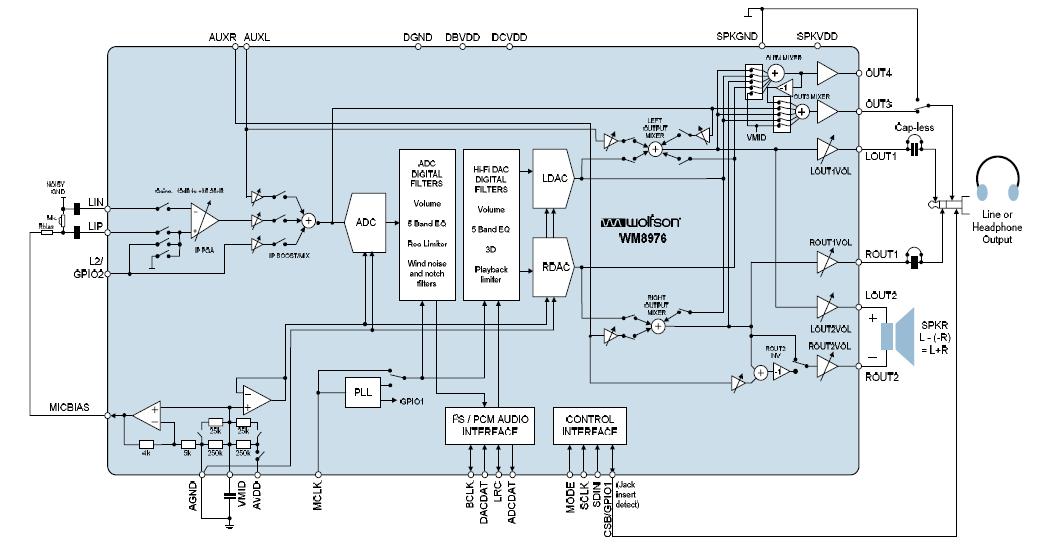

The WM8976 is a low power, high quality codec designed for portable applications such as Digital still camera or Digital Camcorder. The device integrates a preamp for a differential mic, and includes drivers for speakers, headphone and differential or stereo line output. External component requirements are reduced as no separate microphone or headphone amplifiers are required. The application of the WM8976 includes Stereo Camcorder or DSC.

Parametrics

WM8976 absolute maximum ratings: (1)DBVDD, DCVDD, AVDD supply voltages: -0.3V to +3.63V; (2)SPKVDD supply voltage: -0.3V to +7V; (3)Voltage range digital inputs DGND: -0.3V to DVDD +0.3V; (4)Voltage range analogue inputs AGND: -0.3V to AVDD +0.3V; (5)Operating temperature range, TA: -25 to +85℃; (6)Storage temperature prior to soldering: 30℃ max / 85% RH max; (7)Storage temperature after soldering: -65 to +150℃.

Features

WM8976 features: (1)Stereo Codec:; (2)DAC SNR 98dB, THD -84dB; (3)ADC SNR 90dB, THD -80dB; (4)On-chip Headphone Driver with capless option, 40mW output power into 16Ω/ 3.3V SPKVDD; (5)0.9W output power into 8BTL speaker / 5V SPKVDD, Capable of driving piezo speakers; Stereo speaker drive configuration; (6)Mic Preamps: Differential or single-ended microphone Interface, Programmable preamp gain; Psuedo differential input with common mode rejection; Programmable ALC / Noise Gate in ADC path; (7)Low-noise bias supplied for electret microphones.
