XC6367B103MR

XC6367B103MR, Step-Up DC/DC Controller, SOT, -0.3 to +12.0 V, ±100 mA, 150 mW, Torex Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	4.00 / Piece
301 ~ 600 :	3.80 / Piece
601 ~ 1000 :	3.50 / Piece

PartNumber:: XC6367B103MR

Brand:: Torex Semiconductor - TOREX | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-19

From Other Seller

Part Number:XC6367B103MR
US $3.50 - 4.00
Quantity:

piece

Product Summary

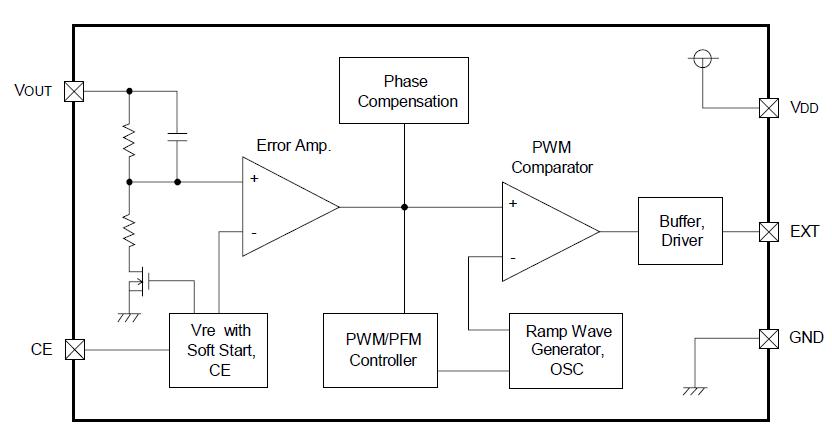

The XC6367B103MR is a multi-functional step-up DC/DC converter controllers with built-in high speed, low ON resistance drivers. Large output currents are possible using an externally connected transistor, coil, diode and capacitor. Output voltage is selectable in 100mV increments within a range of 1.5V ~ 6.5V (±2.5%). The applications of the XC6367B103MR include Electronic information organizers, Palmtops, Cellular and portable phones, Portable audio systems, Various multi-function power supplies.

Parametrics

XC6367B103MR absolute maximum ratings: (1)VDD Pin Voltage, VDD: -0.3 ~ +12.0 V; (2)VOUT Pin Voltage, VOUT: -0.3 ~ +12.0 V; (3)FB Pin Voltage, VFB: -0.3 ~ +12.0 V; (4)CE Pin Voltage, VCE: -0.3 ~ +12.0 V; (5)EXT Pin Voltage, VEXT: -0.3 ~ VDD+0.3 V; (6)EXT Pin Current, IEXT: ±100 mA; (7)Power Dissipation, Pd: 150 mW; (8)Operating Temperature Range, Topr: -30 ~ +80℃; (9)Storage Temperature Range, Tstg: -40 ~ +125℃.

Features

XC6367B103MR features: (1)Input Voltage Range: 0.9V ~ 10V; (2)Operating Voltage Range: 2.0V ~ 10V; (3)Output voltage Range: 1.5V ~ 6.5V programmable in 100mV increments (±2.5%); (4)Oscillation Frequency: 300kHz, 100kHz (±15%); (5)Custom products for 180kHz, 500kHz; (6)Output Current: More than 200mA (VIN=1.8V, VOUT=3.3V); (7)High Efficiency: 84% (TYP.); (8)Stand-by capability: ISTB=0.5μA (MAX.).
